Food & Bewarage Chiller

MODEL:
G-1.5HP-01
Capacity: 4.8 kW

These chillers are manufactured from stainless steel and serve fort he needs of food and bewarage industry.

Applications
System Limits
Gauges & Lights
Cabinet
Options

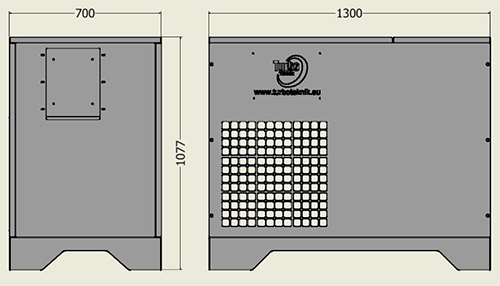

Dimensions

Applications

  • To meet the cold water need of bakeries
  • To meet the cold drinking water needs in enterprises
  • In various food business

Refrigerant Circuit

  • Low pressure protection
  • High pressure protection

Elektrik

  • Pump over current motor protection
  • Pump motor phase protection
  • Compressor over current motor protection

Water Circuit

  • Dixell digital water temperature gauge

Refrigerant Circuit

  • Low pressure fault lamp
  • High pressure fault lamp

Elektrik

  • Compressor thermal fault lamp
  • Pump thermal fault lamp

Cabinet

  • Galvanized sheet (1.5mm)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.

Options

  • Cabin Wheels
Product size
Cooling Capacity kW 4,8
Kcal/h 4,2
Compressor Type Hermetic reciprocating
Power Hp 1,5
Refrigeration Gas R407C
Refrigerant Flow Control Expansion Valve
Evaporator Type Co-axial type
Cooling Fan Quantity 1
Diameter cm 45
Power Watt 160
Flow Rate m3/h 4.500
Pump Type Centrifugal
Power Hp 1
Flow Rate m3/h 3
Head mss 12,5
Material Stainless Steel (SS 304)
Tank Volume Liter 200
Material SS 304
Fluid Connection Inch 1/2
Electrical Apparatus Siemens veya Schneider Electric
Electrical Supply V / Hz 380 /50-60Hz
Working Current A 10
Power Cable n x mm2 5 x 1,5
Supply Power Watt 2,8
Weight kg
• Belirtilen Cooling Capacity değeri, +7,2C evaporasyon sıcaklığı ve +40,0C kondensasyon sıcaklığı baz alınarak verilmiştir.

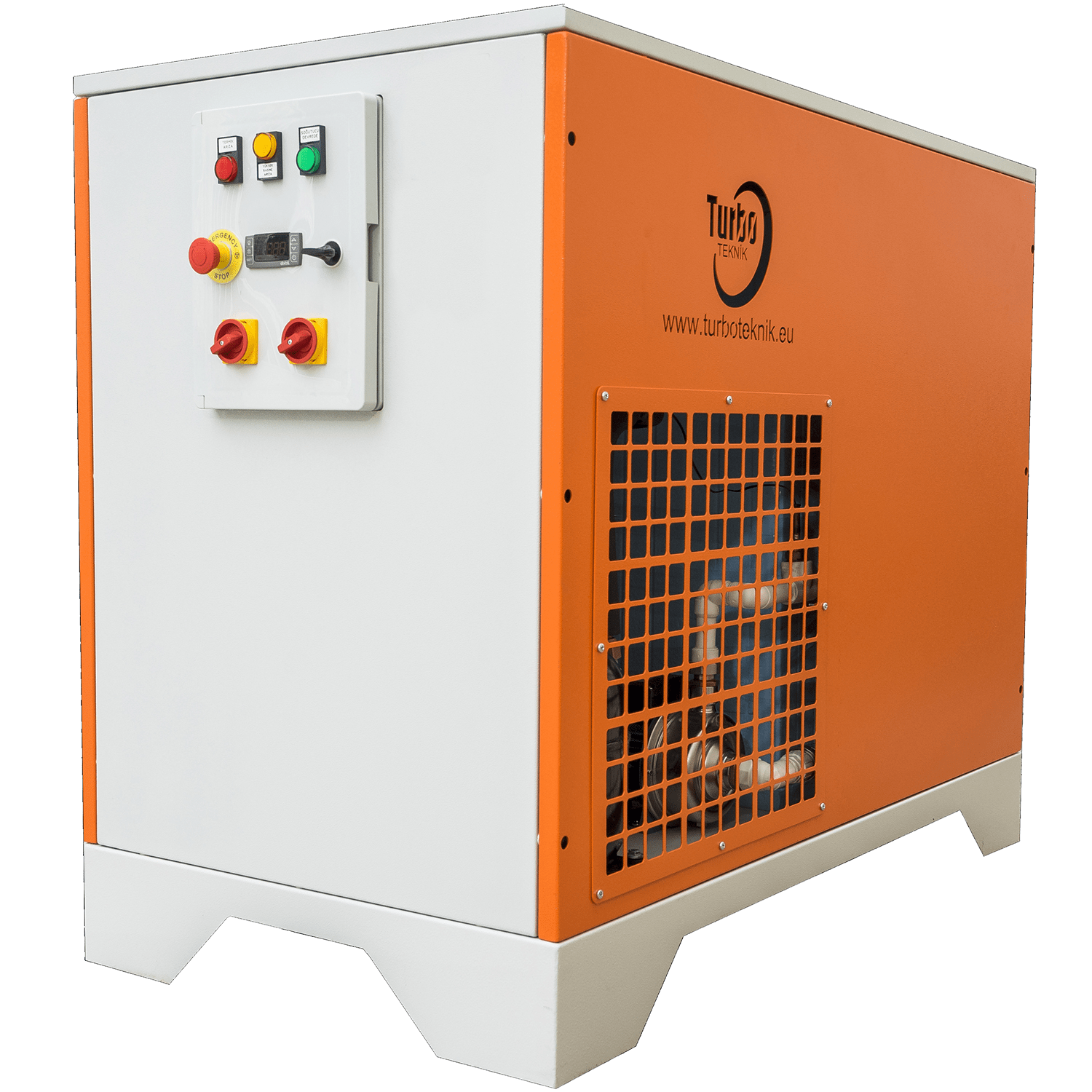

Product image
