Kompresor Hava Kurutucular

MODEL:
H-1/4HP-01
Capacity: 0,8 kW
Applications
System Limits
Cabinet
Dimensions

Applications

  • To avoid problems due to the high level of humidity in the process air.
  • Manufacturing, medical, chemical, textile and automative companies

Refrigerant Circuit

  • High pressure protection
  • Axial fan speed controle
  • Steam Trap with selonoid valve

Cabinet

  • Galvanized sheet (1.5mm)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.
Product size
Cooling Capacity kW 0,85
Kcal/h 0,73
Compressor Type Rotary
Power Hp 1/4
Refrigeration Gas R407C
Refrigerant Flow Control Capillary
Evaporator Type Co-axial
Cooling Fan Quantity 1
Diameter cm 25
Power Watt 73
Flow Rate m3/h 1.350
Pump Type
Power Hp
Flow Rate m3/h
Head mss
Material
Tank Volume Liter
Material Plastic
Fluid Connection Inch 1/2
Electrical Apparatus
Electrical Supply V / Hz 220 /50-60Hz
Working Current A 2,2
Power Cable n x mm2 3 x 1,5
Supply Power kW 0,4
Weight kg
The cooling capacity given in the table is calculated at +2,0C evaporation and +40,0C evaporation temperature.

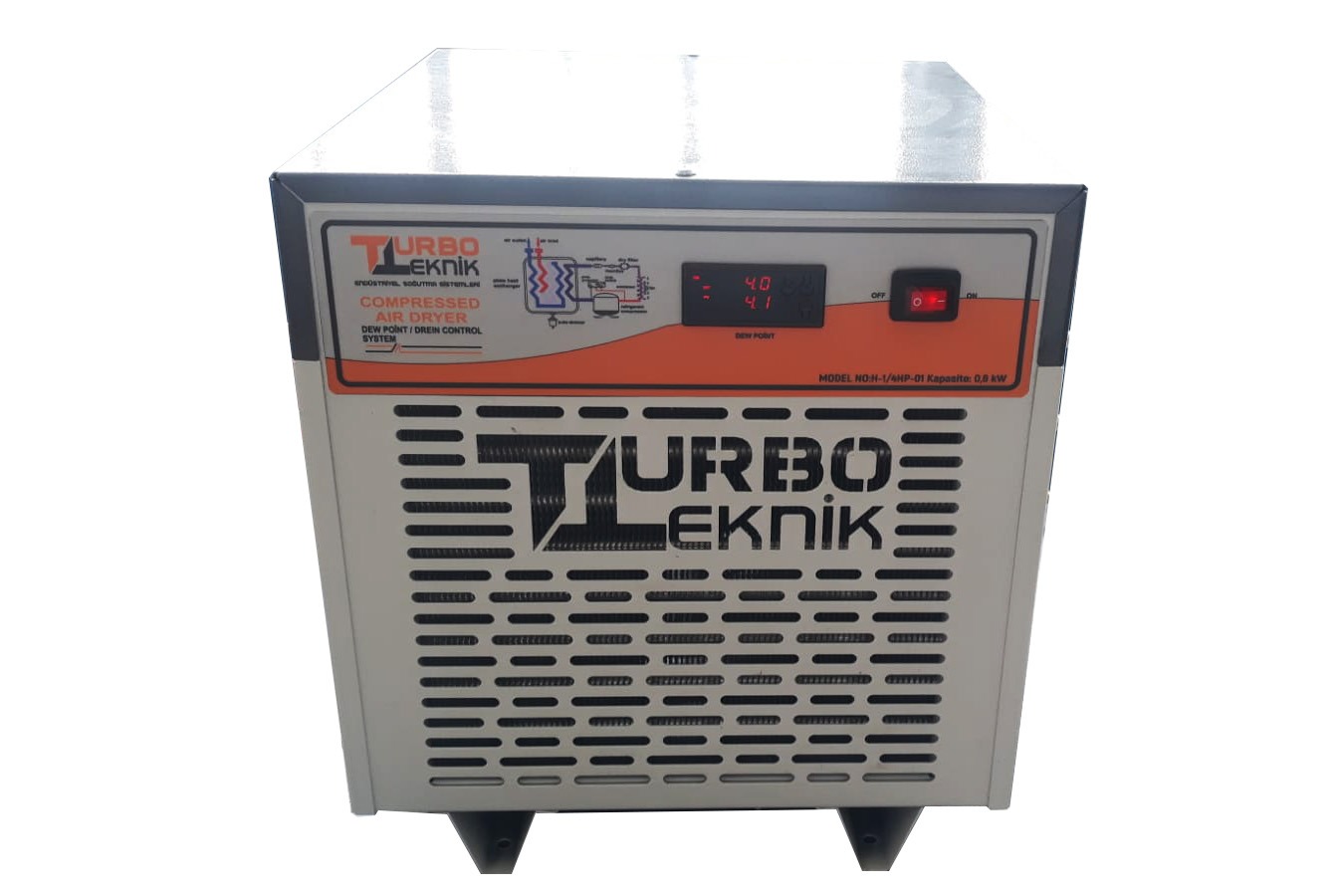

Product image
