Industrial Water Chiller

MODEL:
S-10HP-02
Capacity: 29.5 kW

Our industrial water chiller series products are widely used in plastic, metal, pharmaceutical, textile, automative and chemistry industries.

Specifications
Applications
Fluid Circuit
Warning System
Options

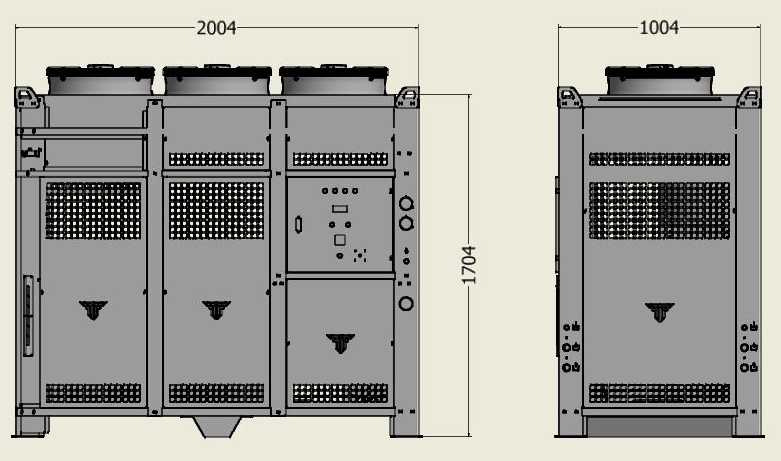

Dimensions

Cooler Fluid Circuit

  • Eco-friendly refrigerant R134A, R404A, R407C or R410A
  • Axial Cooling Fan, aluminum finned copper tube condenser

Electrical Parts

  • Schneider Electric or Siemens brand electrical equipment
  • Dixell digital thermostat controlled

Cabinet

  • Galvanized sheet (1.5mm)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.

Applications

  • Cooling the mold of the injection press
  • Cooling the water of laser sheet cutting machines
  • Cooling the water of induction cookers
  • Cooling of the jaws and transformers of spot welding machines
  • Cooling of torches of arc welding robots
  • Oil cooling of hydraulic presses
  • Cooling of seam welding machines
  • Keeping acid bath temperature constant between 20-30 C in coating processes such as galvanization and anodizing
  • Cooling of the servo motor shaft of router benches in the furniture industry

Cooling Circuit

  • Centrifugal pump
  • Plastic water tank
  • Brass material NPT fittings

Refrigerant Circuit

  • Scroll Compressor
  • Cooling Fan speed control ON / OFF
  • Liquid gas sight glass (with moisture indicator)
  • Liquid gas cylinder
  • Shell and tube evaporator
  • Drying filter (drayer)
  • Thermostatic expansion valve
  • Gas flow control with solenoid valve

Warning System

  • Water pump motor protection and fault light
  • Compressor motor protection fault lamp
  • Low and high gas pressure protection and fault lamp
  • Low and high pressure gas gauge
  • Water pressure manometer
  • Frost protection thermostat

Options

  • Shell and tube evaporator
  • Scroll Compressor
  • Stainless water tank (304 SS)
  • Cabin Wheels

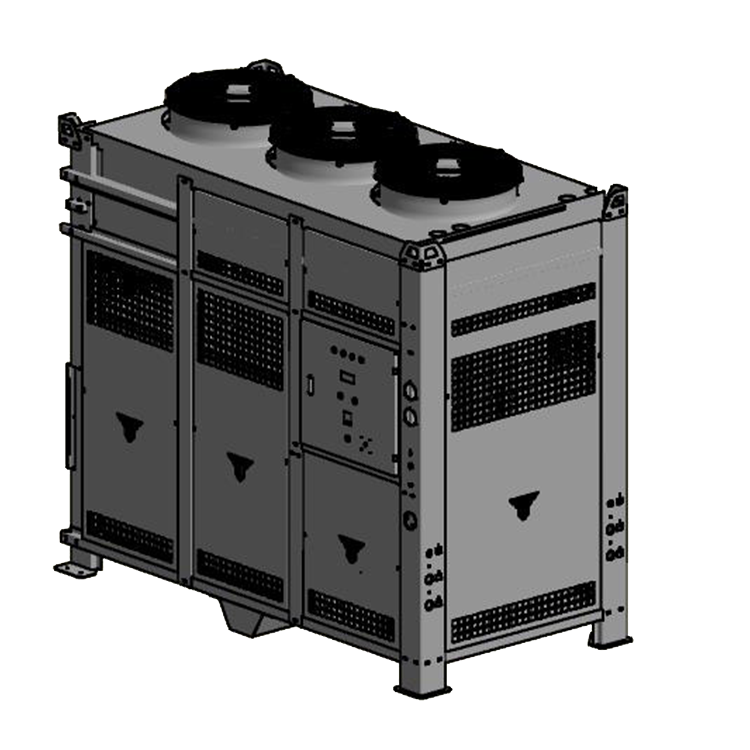

Product size
Cooling Capacity kW 29,9
Kcal/h 25,7
Compressor Type Scroll
Power Hp 10
Refrigeration Gas R407C
Refrigerant Flow Control Expansion Valve
Evaporatör Shell and tube
Cooling Fan Quantity 3
Diameter cm 50
Power Watt 520
Flow Rate m3/h 8.760
Pump Type Centrifugal
Power Hp 2.2
Flow Rate m3/h 2
Head mss 40
Material GG25 Cast iron
Tank Volume Liter 500
Material Plastic
Fluid Connection Inch 2
Electrical Apparatus Siemens veya Schneider Electric
Electrical Supply V / Hz 380 /50-60Hz
Working Current A 26,7
Power Cable n x mm2 5 x 6
Supply Power kW 13
Weight kg
The cooling capacity given in the table is calculated at +7,2C evaporation and +40,0C evaporation temperature.
