Industrial Water Chiller

MODEL:
S-12HP-01
S-15HP-01
Capacity: 34.9 - 45 kW

Our industrial water chiller series products are widely used in plastic, metal, pharmaceutical, textile, automative and chemistry industries.

Applications
System Limits
Gauges & Lights
Cabinet
Options

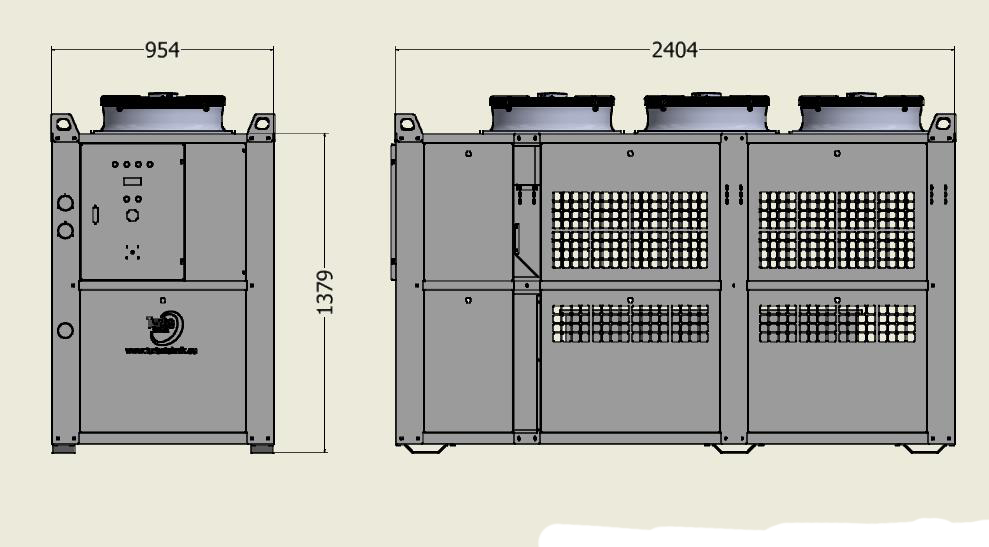

Dimensions

Applications

  • Cooling the mold of the injection press
  • Cooling the water of laser sheet cutting machines
  • Cooling the water of induction cookers
  • Cooling of the jaws and transformers of spot welding machines
  • Cooling of torches of arc welding robots
  • Oil cooling of hydraulic presses
  • Cooling of seam welding machines
  • Keeping acid bath temperature constant between 20-30 C in coating processes such as galvanization and anodizing
  • Cooling of the servo motor shaft of router benches in the furniture industry

Water Circuit

  • Low water level protection
  • Frost protection

Refrigerant Circuit

  • Low pressure protection
  • High pressure protection

Electric Circuit

  • Pump over current motor protection
  • Pump motor phase protection
  • Compressor over current motor protection
  • Compressor motor phase protection

Water Circuit

  • Dixell digital water temperature gauge
  • Water pressure manometer

Refrigerant Circuit

  • Low pressure manometer
  • High pressure manometer
  • Low pressure fault lamp
  • High pressure fault lamp

Electric Circuit

  • Compressor thermal fault lamp
  • Pump thermal fault lamp

Cabinet

  • Galvanized sheet (1.5mm)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.

Options

  • Scroll Compressor
  • Stainless water tank (304 SS)
  • Cabin Wheels
Product size
S-12HP-01
S-15HP-01
Cooling Capacity kW 34,9
Kcal/h 30
Compressor Type Scroll
Power Hp 12
Refrigeration Gas R407C
Refrigerant Flow Control Expansion Valve
Evaporator Type Shell and tube
Cooling Fan Quantity 3
Diameter cm 50
Power Watt 520
Flow Rate m3/h 8.760
Pump Type Centrifugal
Power Hp 2.2
Flow Rate m3/h 2
Head mss 40
Material GG25 Cast iron
Tank Volume Liter 200
Material Plastic
Fluid Connection Inch 2
Electrical Apparatus Siemens veya Schneider Electric
Electrical Supply V / Hz 380 /50-60Hz
Working Current A 28,5
Power Cable n x mm2 5 x 6
Supply Power kW 14,5
Weight kg
The cooling capacity given in the table is calculated at +7,2C evaporation and +40,0C evaporation temperature.
Cooling Capacity kW 45,8
Kcal/h 39,4
Compressor Type Scroll
Power Hp 15
Refrigeration Gas R407C
Refrigerant Flow Control Expansion Valve
Evaporator Type Shell and tube
Cooling Fan Quantity 3
Diameter cm 50
Power Watt 520
Flow Rate m3/h 8.760
Pump Type Centrifugal
Power Hp 2.2
Flow Rate m3/h 2
Head mss 40
Material GG25 Cast iron
Tank Volume Liter 200
Material Plastic
Fluid Connection Inch 2
Electrical Apparatus Siemens veya Schneider Electric
Electrical Supply V / Hz 380 /50-60Hz
Working Current A 44,5
Power Cable n x mm2 5 x 10
Supply Power kW 14,4
Weight kg
• Belirtilen Cooling Capacity değeri, +5C evaporasyon sıcaklığı ve +40C kondensasyon sıcaklığı baz alınarak verilmiştir.

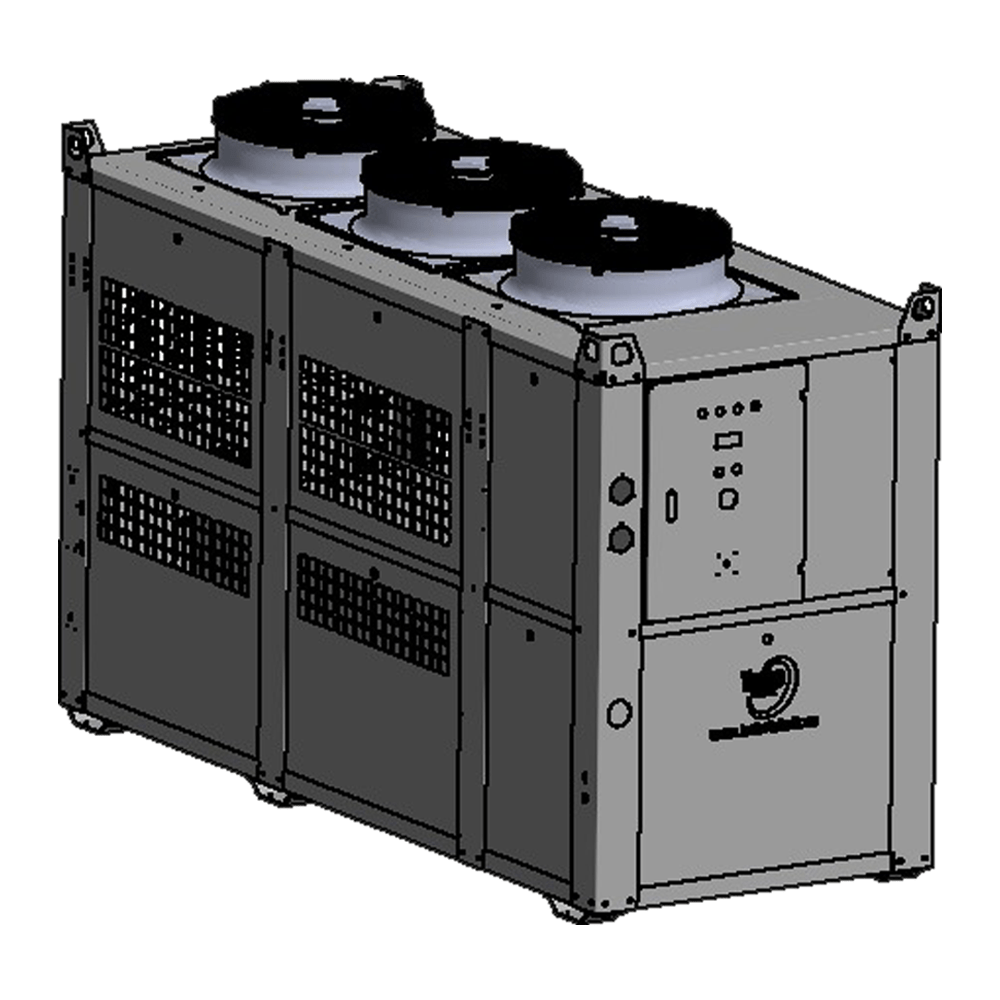

Product image
Product icons
