Industrial Water Chiller

MODEL:
S-2HP-03
Capacity: 6.5 kW

Our industrial water chiller series products are widely used in plastic, metal, pharmaceutical, textile, automative and chemistry industries.

Applications
System Limits
Gauges & Lights
Cabinet
Options
Dimensions

Applications

  • Cooling the mold of the injection press
  • Cooling the water of laser sheet cutting machines
  • Cooling the water of induction cookers
  • Cooling of the jaws and transformers of spot welding machines
  • Cooling of torches of arc welding robots
  • Oil cooling of hydraulic presses
  • Cooling of seam welding machines
  • Keeping acid bath temperature constant between 20-30 C in coating processes such as galvanization and anodizing
  • Cooling of the servo motor shaft of router benches in the furniture industry

Water Circuit

  • Low water level protection

Refrigerant Circuit

  • Low pressure protection
  • High pressure protection

Electric Circuit

  • Pump over current motor protection
  • Compressor over current motor protection

Water Circuit

  • Dixell digital water temperature gauge

Refrigerant Circuit

  • Low pressure manometer
  • High pressure manometer
  • Low pressure fault lamp
  • High pressure fault lamp

Electric Circuit

  • Compressor thermal fault lamp
  • Pump thermal fault lamp light

Cabinet

  • Galvanized sheet (1.5mm)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.

Options

  • Plate heat exchanger
  • Stainless water tank (304 SS)
  • Cabin Wheels

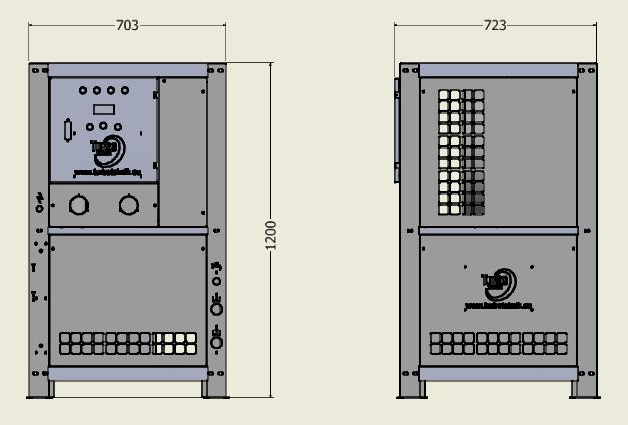

Product size
Cooling Capacity kW 6,5
Kcal/h 5,6
Compressor Type Hermetic reciprocating
Power Hp 2
Refrigeration Gas R404A
Refrigerant Flow Control Expansion Valve
Evaporator Type Shell and tube
Cooling Fan Quantity 1
Diameter cm 45
Power Watt 160
Flow Rate m3/h 4.500
Pump Type Centrifugal
Power Hp 1
Flow Rate m3/h 2
Head mss 29
Material GG25 Cast iron
Tank Volume Liter 100
Material Siyah sac
Fluid Connection Inch 1
Electrical Apparatus Siemens veya Schneider Electric
Electrical Supply V / Hz 380 /50-60Hz
Working Current A 7,3
Power Cable n x mm2 5 x 1,5
Supply Power kW 3,25
Weight kg
The specified Cooling Capacity value is based on + 5C evaporation temperature and + 40C condensation temperature.

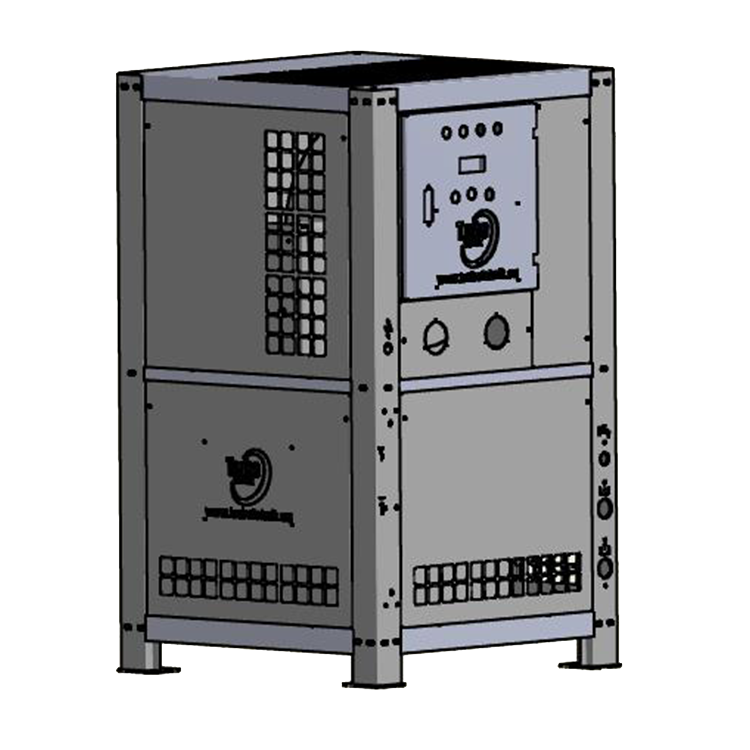

Product image
Product icons
PRODUCT CATALOG

Heat Load Calculation

Flow rate
Unit
Fluid
Inlet Temperature (°C)
Outlet Temperature (°C)
Heat Load (kWatt)

Cooling Capacity Calculation

Volume
Unit
Fluid
Initial Temperature (°C)
Final Temperature (°C)
Time (minutes)
Cooling Capacity (kWatt)
