EDM Machine Chillers

MODEL:
T-1.5HP-01
Capacity: 4.8 kW

EDM machine chillers are used to remove excess heat from the water reservoir of EDM machines.

Applications
System Limits
Gauges & Lights
Cabinet
Options

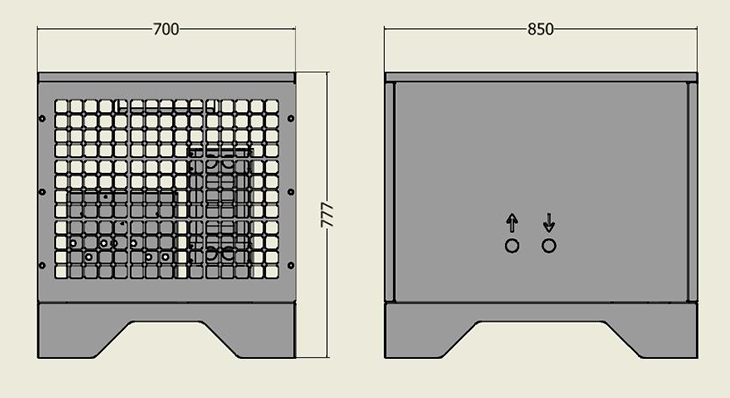

Dimensions

Applications

  • CNC wire erosion machines for cooling
  • In the cooling process of pool water

Refrigerant Circuit

  • Low pressure protection
  • High pressure protection

Water Circuit

  • Low water level protection
  • Frost protection

Water Circuit

  • Dixell digital water temperature gauge

Cabinet

  • Galvanized sheet (1.5mm)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.

Options

  • Cabin Wheels
Product size
Cooling Capacity kW 4,8
Kcal/h 4,2
Compressor Type Hermetic reciprocating
Power Hp 1.5
Refrigeration Gas R407C
Refrigerant Flow Control Expansion Valve
Evaporator Type Plate heat exchanger
Cooling Fan Quantity 1
Diameter cm 45
Power Watt 160
Flow Rate m3/h 4.500
Pump Type
Power Hp
Flow Rate m3/h
Head ss
Material
Tank Volume Liter
Material
Fluid Connection Inch 1/2
Electrical Apparatus Siemens veya Schneider Electric
Electrical Supply V / Hz 380 /50-60Hz
Working Current A 4,8
Power Cable n x mm2 5 x 1,5
Supply Power kW 2,1
Weight kg
The cooling capacity given in the table is calculated at +7,2C evaporation and +40,0C evaporation temperature.

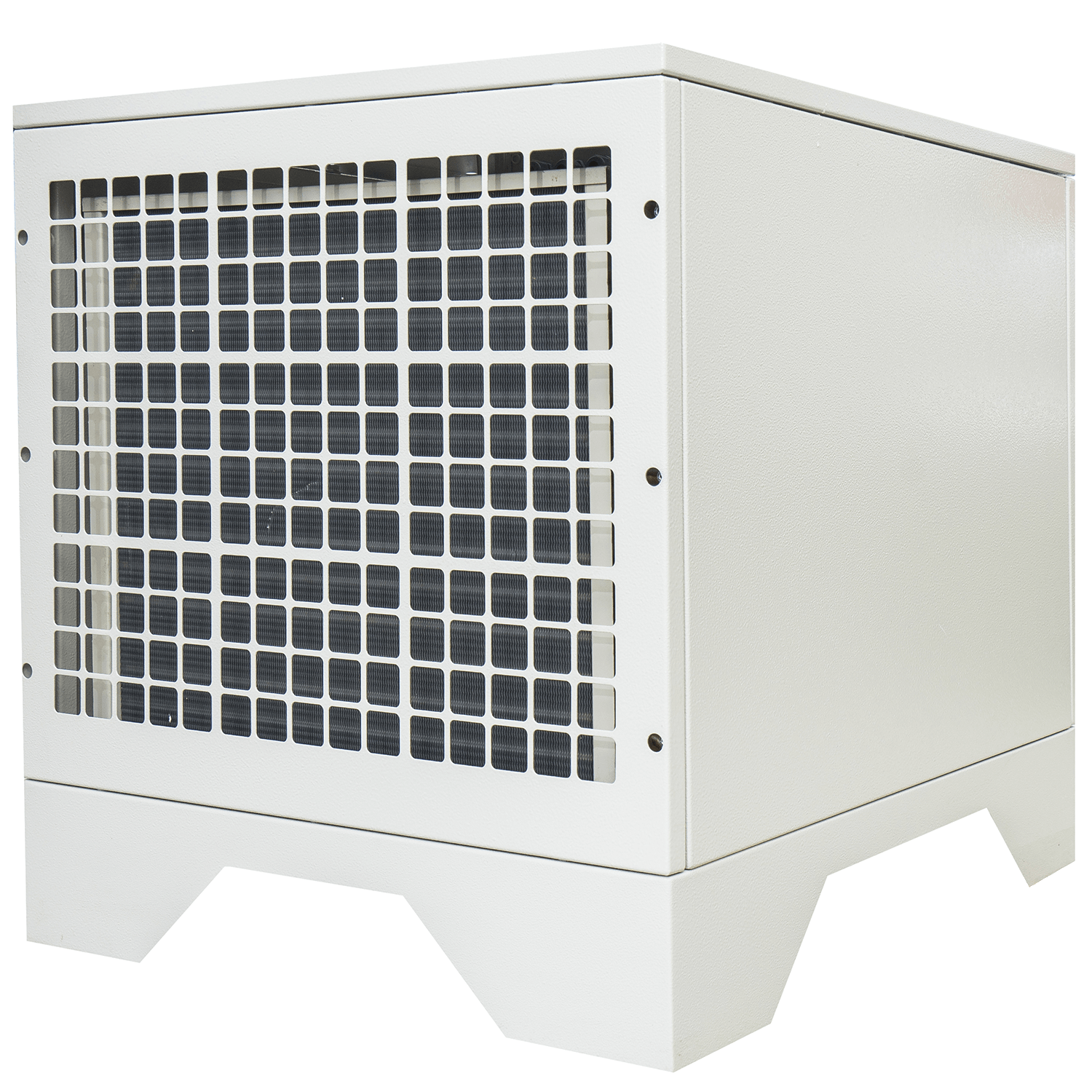

Product image
