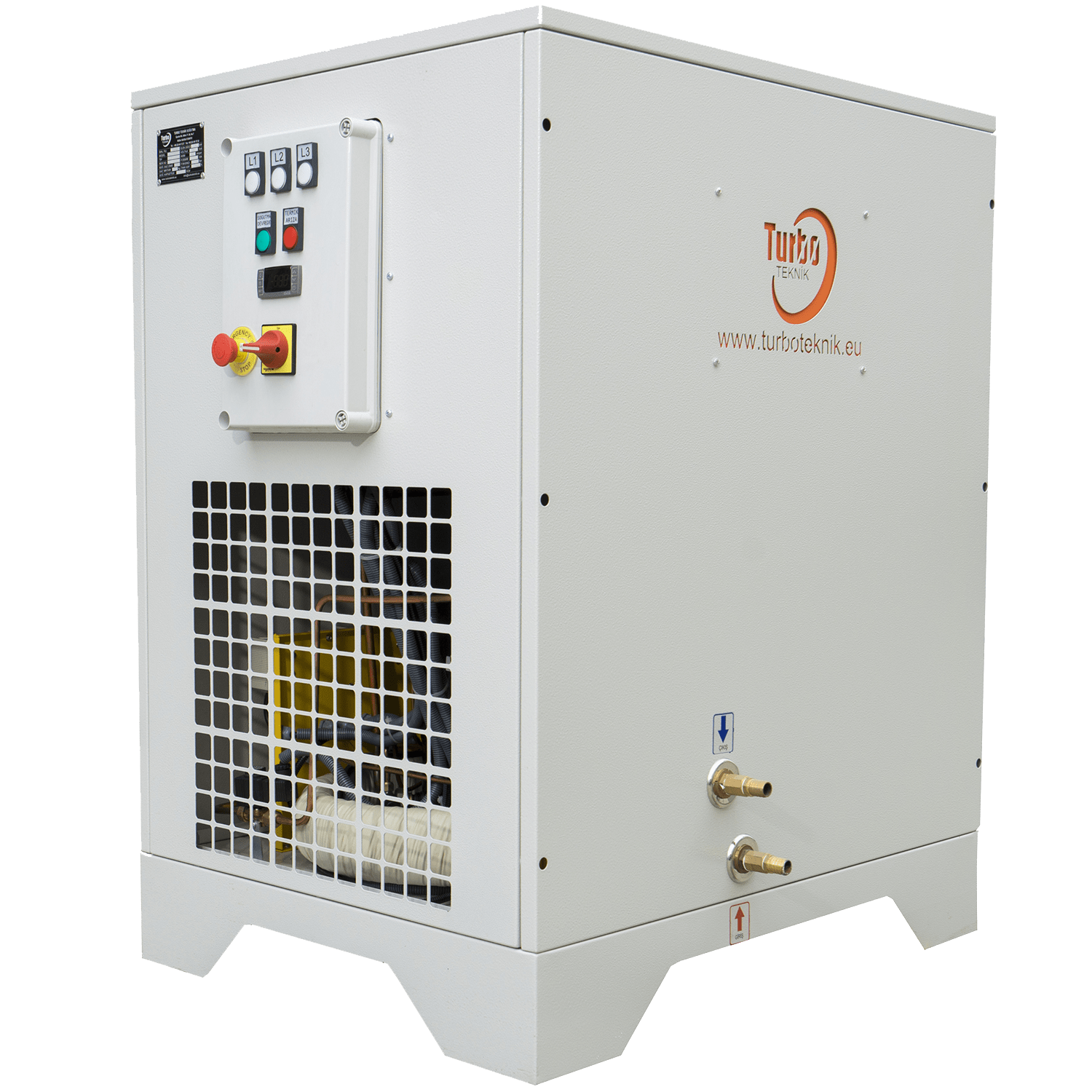

EDM machine chillers are used to remove excess heat from the water reservoir of EDM machines.
| Cooling Capacity | kW | 6,5 | |||||
| Kcal/h | 5,6 | ||||||
| Compressor | Type | Hermetic reciprocating | |||||
| Power | Hp | 2 | |||||
| Refrigeration Gas | R404A | ||||||
| Refrigerant Flow Control | Expansion Valve | ||||||
| Evaporator Type | Co-axial type | ||||||
| Cooling Fan | Quantity | 1 | |||||
| Diameter | cm | 45 | |||||
| Power | Watt | 160 | |||||
| Flow Rate | m3/h | 4.500 | |||||
| Pump | Type | ||||||
| Power | Hp | ||||||
| Flow Rate | m3/h | ||||||
| Head | ss | ||||||
| Material | |||||||
| Tank | Volume | Liter | |||||
| Material | |||||||
| Fluid Connection | Inch | 1/2 | |||||
| Electrical Apparatus | Siemens veya Schneider Electric | ||||||
| Electrical Supply | V / Hz | 380 /50-60Hz | |||||
| Working Current | A | 5,1 | |||||
| Power Cable | n x mm2 | 5 x 1,5 | |||||
| Supply Power | kW | 2,5 | |||||
| Weight | kg | ||||||
| The cooling capacity given in the table is calculated at +5C evaporation and +40C evaporation temperature. | |||||||
