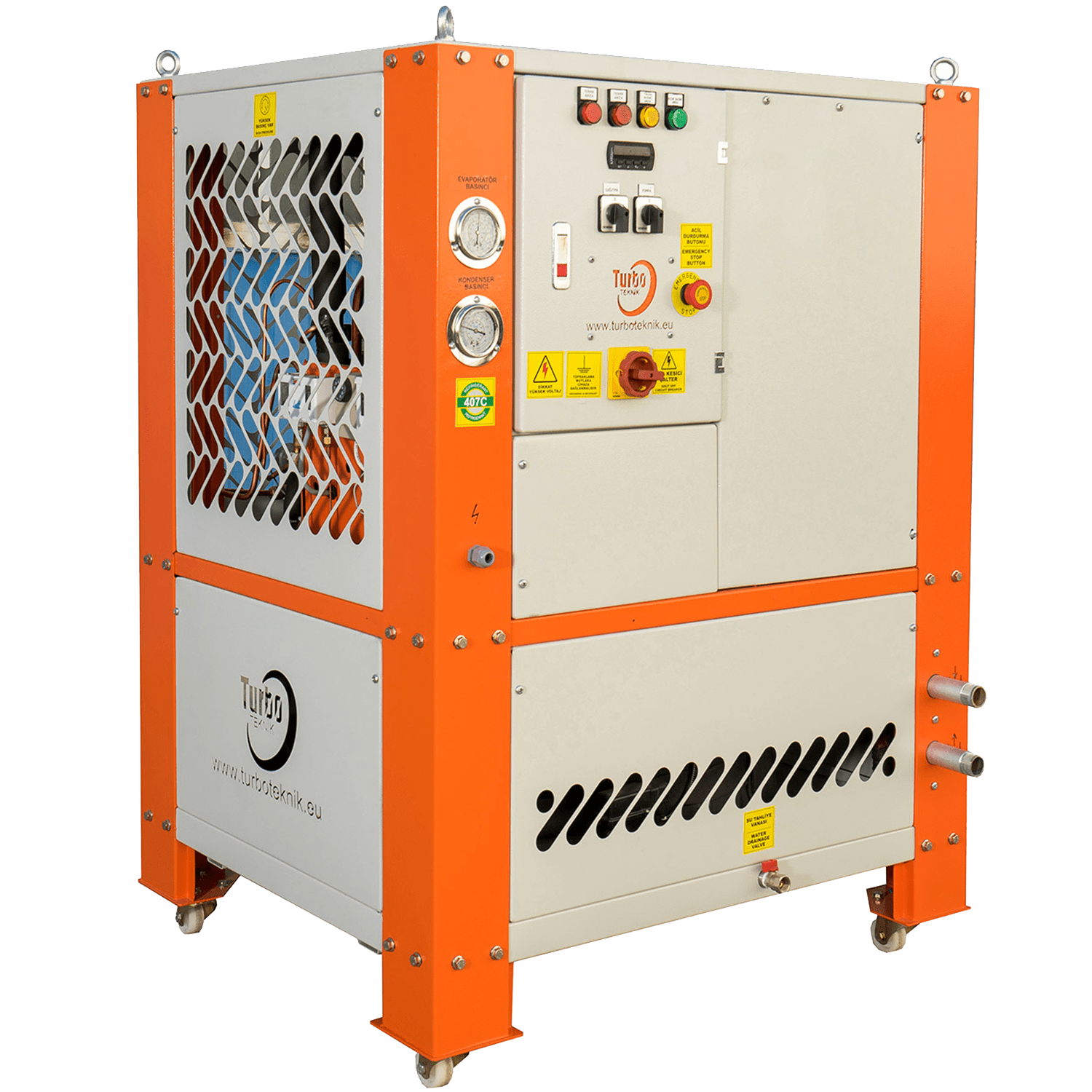

EDM Machine Chillers
Capacity: 11.6 kW
EDM machine chillers are used to remove excess heat from the water
reservoir of EDM machines.
Applications
System Limits
Gauges & Lights
Cabinet
Options

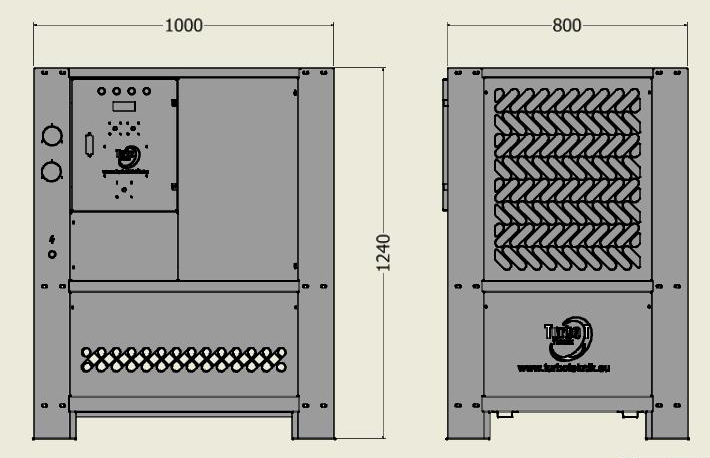

Dimensions
Applications
- CNC wire erosion machines for cooling
- In the cooling process of pool water
Elektrik
- Pump over current motor protection
- Pump over current motor protection
- Compressor over current motor protection
- Compressor motor phase protection
Refrigerant Circuit
- Low pressure protection
- High pressure protection
Water Circuit
- Low water level protection
- Frost protection
Elektrik
- Compressor thermal fault lamp
- Pump thermal fault lamp
Refrigerant Circuit
- Low pressure manometer
- High pressure manometer
- Low pressure fault lamp
- High pressure fault lamp
Water Circuit
- Dixell digital water temperature gauge
- Water pressure manometer
Cabinet
- Galvanized sheet (1.5mm)
- Electrostatic powder coated
- Top and side panels can be opened
- Compact dimensions
- It is designed for indoor work.
|
Teknik Specifications
|
|
|
Cooling Capacity
|
kW |
11,6 |
| Kcal/h |
10 |
|
Compressor
|
Type |
Scroll |
| Power |
Hp |
4 |
|
Refrigeration Gas
|
R407C |
|
Refrigerant Flow Control
|
Expansion Valve |
|
Evaporator Type
|
Co-axial type |
|
Cooling Fan
|
Quantity |
1 |
| Diameter |
cm |
50 |
| Power |
Watt |
520 |
| Flow Rate |
m3/h |
8.760 |
|
Pump
|
Type |
|
| Power |
Hp |
|
| Flow Rate |
m3/h |
|
| Head |
ss |
|
| Material |
|
|
Tank
|
Volume |
Liter |
|
| Material |
|
|
Fluid Connection
|
Inch |
1 |
|
Electrical Apparatus
|
Siemens veya Schneider Electric |
|
Electrical Supply
|
V / Hz |
380 /50-60Hz |
|
Working Current
|
A |
10,4 |
|
Power Cable
|
n x mm2
|
5 x 2,5 |
|
Supply Power
|
kW |
4,4 |
|
Weight
|
kg |
|
|
The cooling capacity given in the table is calculated
at +7,2C evaporation and +40,0C evaporation
temperature.
|
