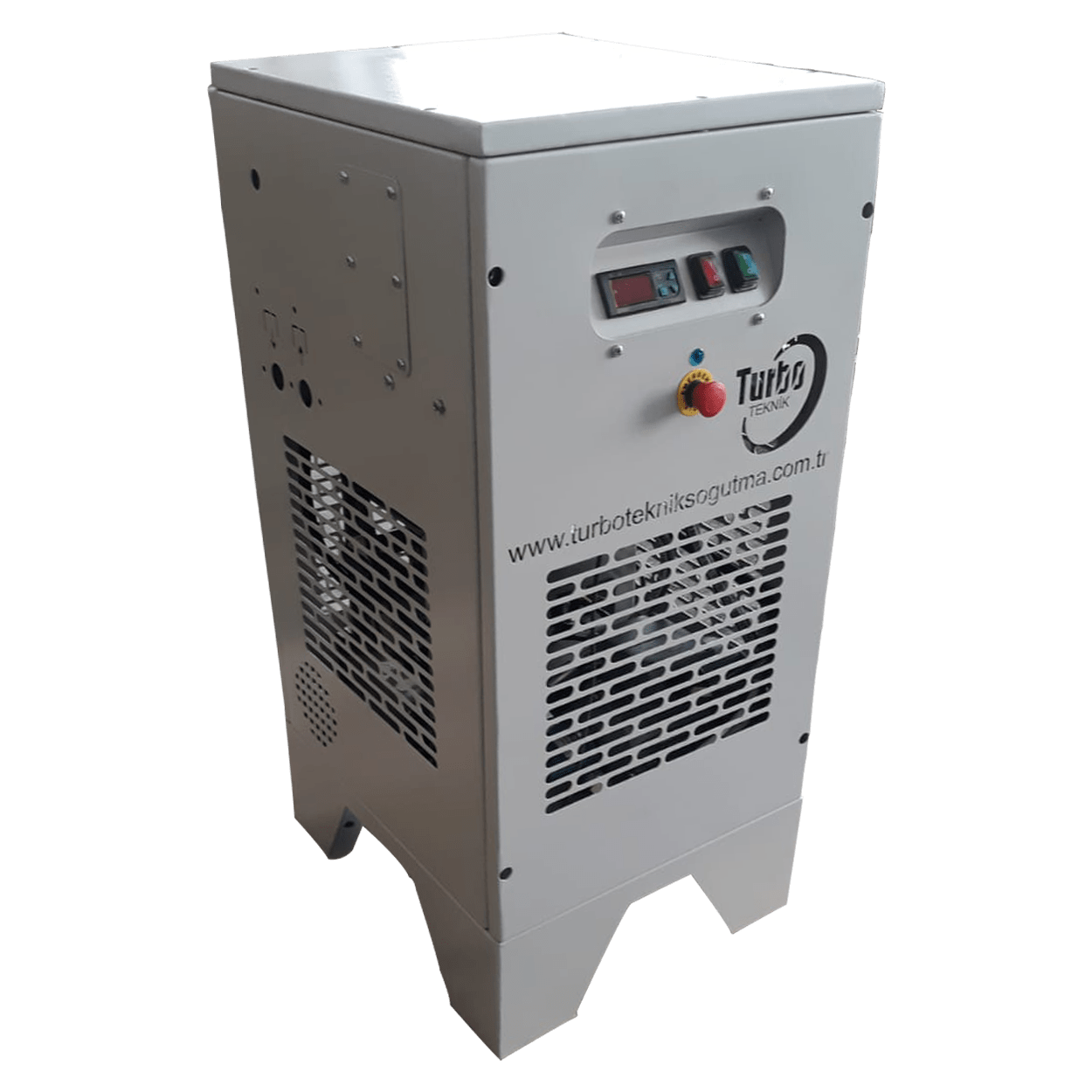

Oil chillers are used to cool spindle&gearbox mechanisms of CNC lathes and to cool bor oils.
| Cooling Capacity | kW | 844 | |||||
| cal/h | 725 | ||||||
| Compressor | Type | Hermetic reciprocating | |||||
| Power | Hp | 1/4 | |||||
| Refrigeration Gas | R134A | ||||||
| Refrigerant Flow Control | Capillary | ||||||
| Evaporator Type | Co-axial heat exchanger | ||||||
| Cooling Fan | Quantity | 1 | |||||
| Diameter | cm | 20 | |||||
| Power | Watt | 70 | |||||
| Flow Rate | m3/h | 400 | |||||
| Pump | Type | Gear | |||||
| Power | Hp | 1/2 | |||||
| Flow Rate | lt/dk | 7.5 | |||||
| Head | ss | 5 | |||||
| Material | Cast iron | ||||||
| Yağ Tankı | Volume | Liter | 15 | ||||
| Material | Stainless steel (SS304) | ||||||
| Yağ Bağlantısı | Inch | 1/2 | |||||
| Electrical Apparatus | Siemens veya Schneider Electric | ||||||
| Electrical Supply | V / Hz | 380 /50-60Hz | |||||
| Working Current | A | 4,7 | |||||
| Power Cable | n x mm2 | 5 x 1,5 | |||||
| Supply Power | kW | 0,78 | |||||
| Weight | kg | ||||||
| •The cooling capacity given in the table is calculated at +7,2C evaporation and +40,0C evaporation temperature. | |||||||
